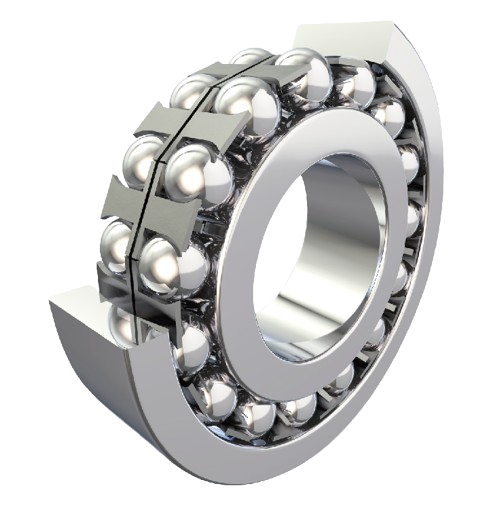

DAC BEARING

DAC bearings are double-row angular contact ball bearings, commonly used in automotive wheel hubs. They are designed to support both radial and axial loads, and are typically pre-set with a specific axial play for easy installation without requiring further adjustment.



Main Functions


  •   Double-row design
      Incorporates two rows of balls, allowing for high load-carrying capacity.
  •   Angular contact
      The bearing geometry allows for the support of both radial and axial loads, making them suitable
      for wheel hub applications.
  •   Integral outer ring
      The outer ring is a single, continuous piece, simplifying the design and installation process.
  •   Pre-lubricated and sealed
      The bearings are typically supplied with lifetime lubrication and seals, minimizing maintenance
      requirements.
  •   No clearance adjustment needed
      Designed with a built-in axial play, eliminating the need for complex clearance adjustments
  •   during installation.

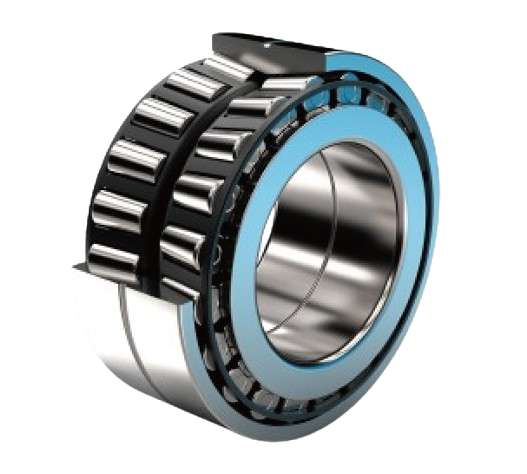

DTR BEARING

Double-row tapered roller bearings are rolling element bearings designed to support both radial and axial loads, with two rows of tapered rollers. These bearings are known for their ability to handle heavy loads and are commonly used in applications like gearboxes, rolling mills, and other machinery requiring robust support.


Main Functions

ㆍ Support all types of loads: moment loads, axial loads, and radial loads in any direction.

ㆍ High rigidity with high load capacity

ㆍ Several designs : back-to-back, face-to-face, KBE- and KH-type

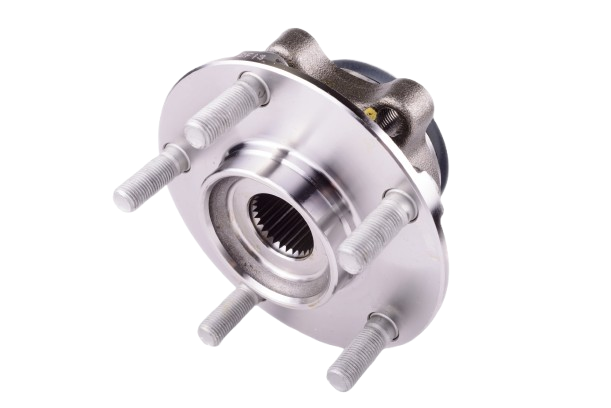

HUB UNIT

The hub unit, also known as the wheel hub assembly, is a critical component located

between the vehicle's suspension and the wheel. It allows the wheel to rotate smoothly

while supporting the vehicle's weight.


Main Functions

Ensures smooth wheel rotation

Maintains precise wheel alignment during steering

ㆍ Works with the brake disc or drum to transfer braking force

ㆍ May include an ABS sensor to provide wheel speed information

production line

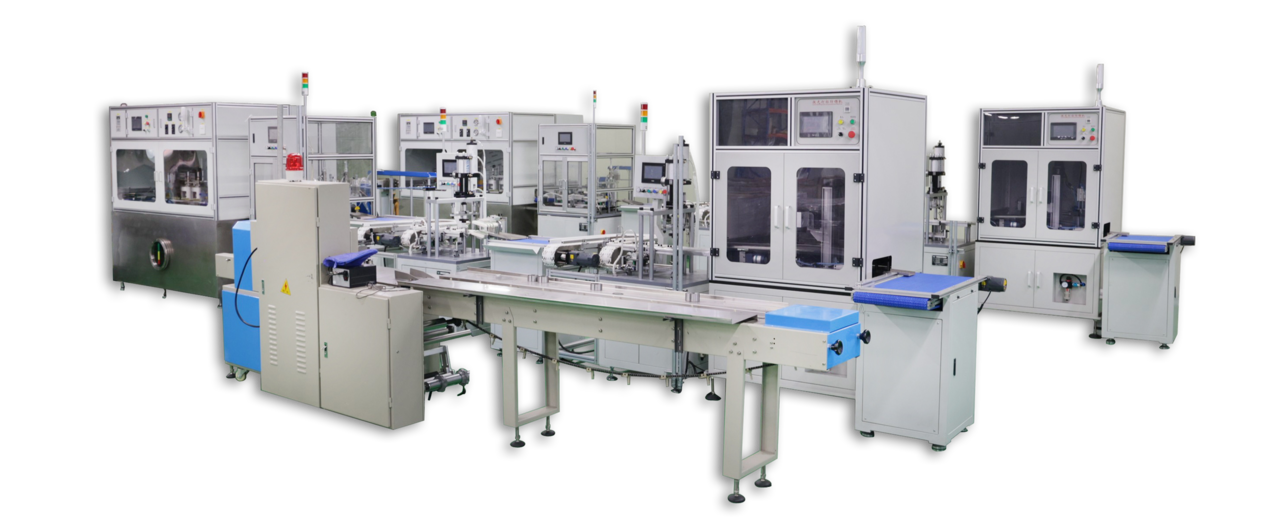

AUTOMATIC PRODUCTION LINE

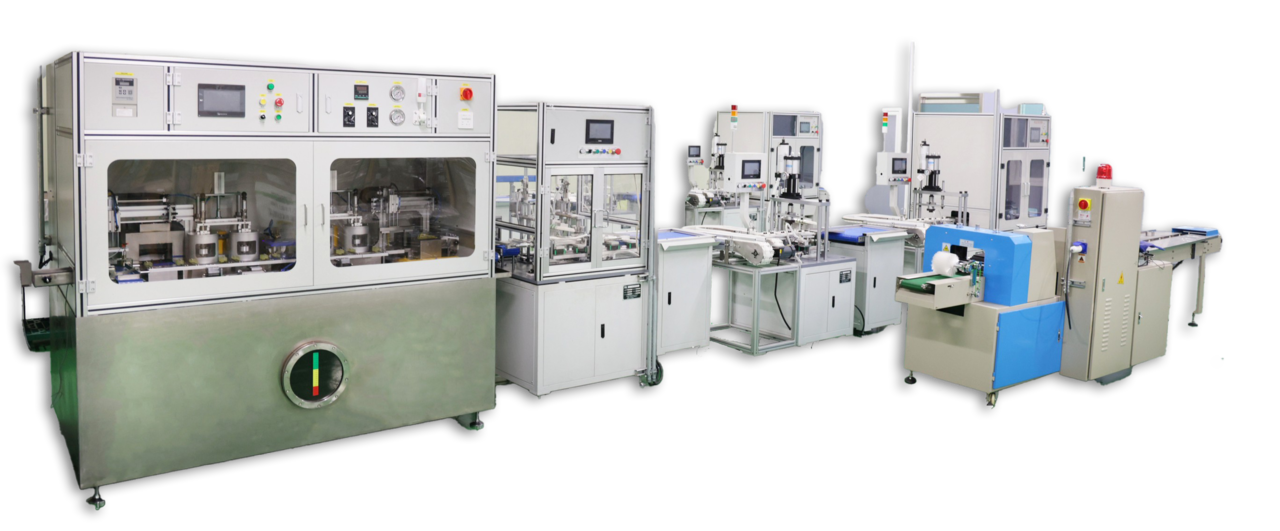

AUTOMATIC PRODUCTION LINE

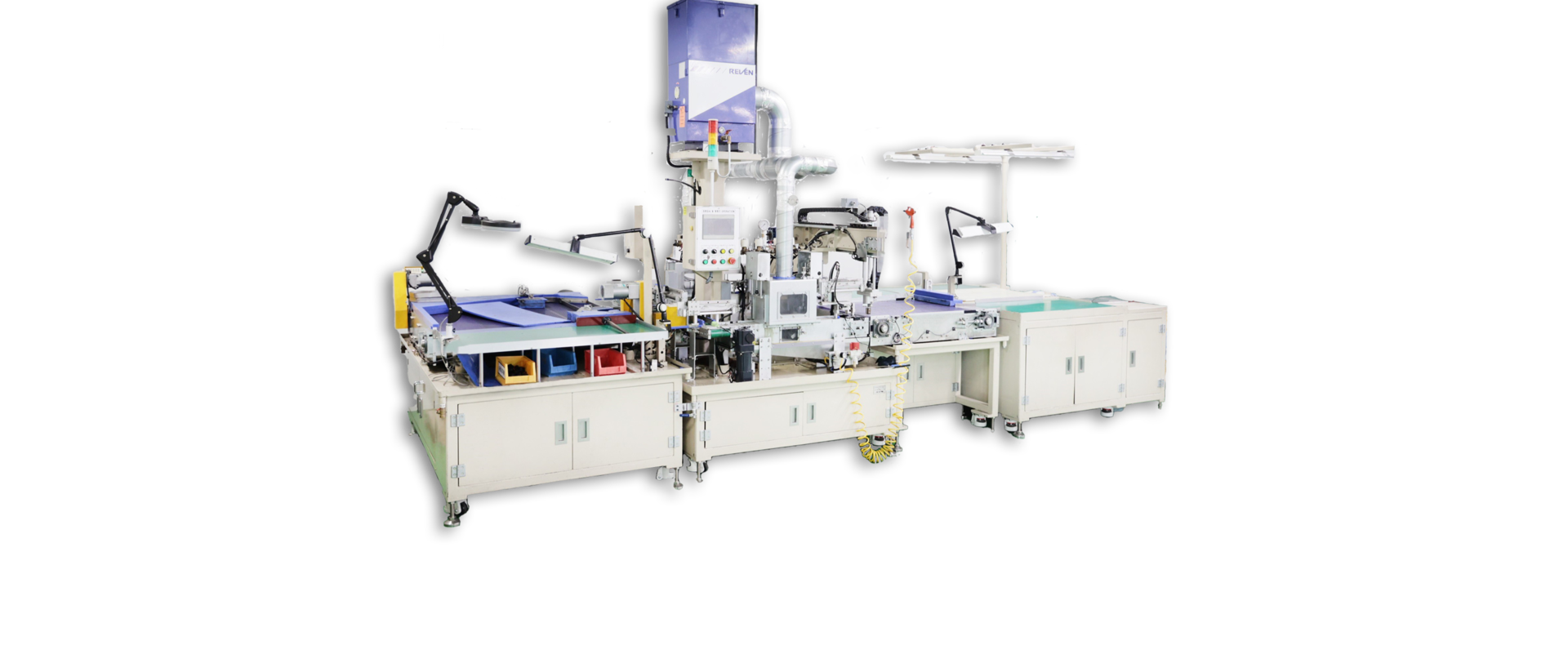

AUTOMATIC INSPECTION LINE
